6.86 inch LCD IPS display/ Module/ 480*1280 /RGB interface 40PIN

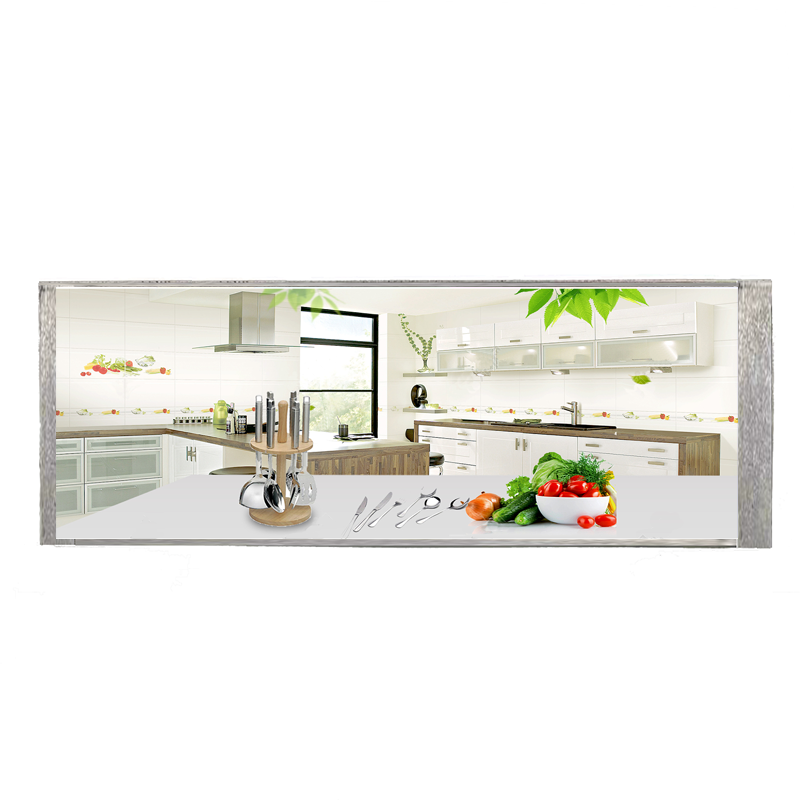

This 6.86 inch LCD display is a IPS TFT-LCD with capacitive touch module. It is composed of a TFT-LCD panel, driver IC, FPC, a back light, unit. The 6.86 display area contains 480*1280 pixels and can display up to 16.7M colors. The specific parameters are as follows:
|Product||6.86 inch LCD display/ Module|
|Viewing angle range||80 degree|
|LCM Driver IC||NV3051F|
|Place of Origin||Shenzhen ,Guangdong, China|
Features&Mechanical Specifications(As shown in the following figure)：
Dimensional outline(As shown in the following figure):
1． This 6.86-inch LCD display, backlit rubber frame iron frame integrated design and high reliability design.
2．The backlight back has an iron frame, which can play a certain protective role on the LCD screen
3．This LCD is IPS, Large viewing angle, true color, excellent picture, accurate color

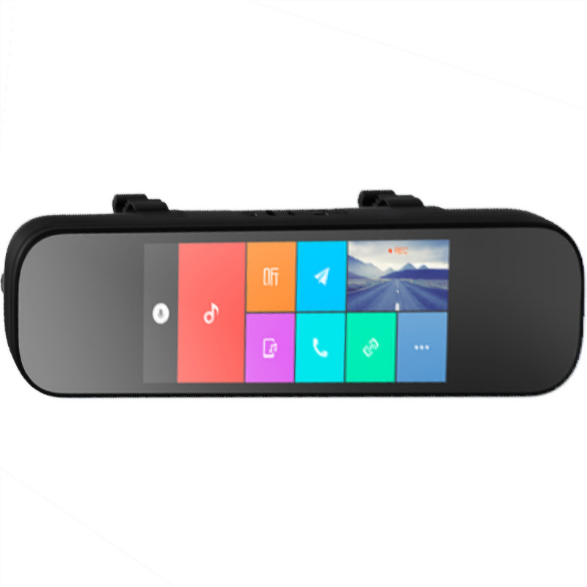

4．This 6.86-inch display screen has strong anti-interference and many types of interfaces, which is conducive to development. It is mostly used in driving recorders, car players, industrial control industries, or other special industries
Product application scenarios
The 6.86-inch 480*1280 standard TFT color LCD module display is used in many fields such as automotive electronics, educational electronics, household appliances, tax control equipment, instrumentation, smart equipment, medical equipment, industrial control equipment, and power equipment.
Our main advantages
1. Juxian's leaders have an average of 8-12 years of experience in the LCD and LCM industries.
2. We are always committed to providing reliable and cost-effective products with advanced equipment and rich resources. At the same time, under the premise of ensuring customer quality, delivery on time!
3. We have strong R&D capabilities, responsible staffs, and sophisticated manufacturing experience, which all enable us to design, develop, produce LCMs and provide all-round service according to customers' requirements.

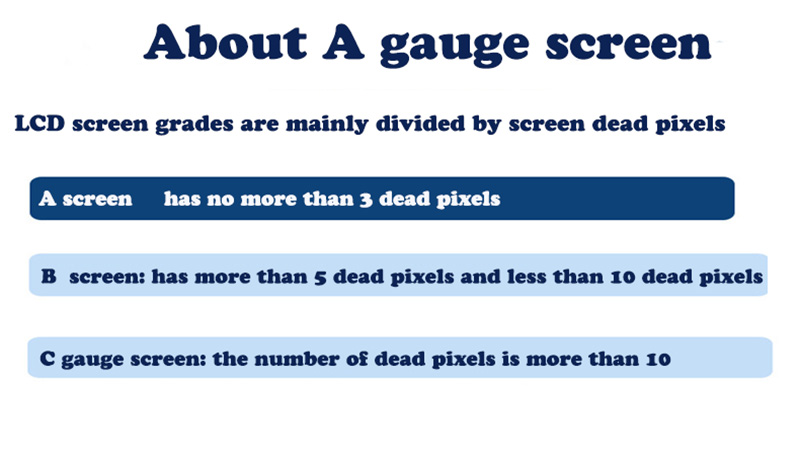

4. The main material glass IC of the product is A grade, and the auxiliary materials are purchased from the most stable and reliable ACF and anti-corrosion blue glue on the market to ensure the reliability and stability of the product

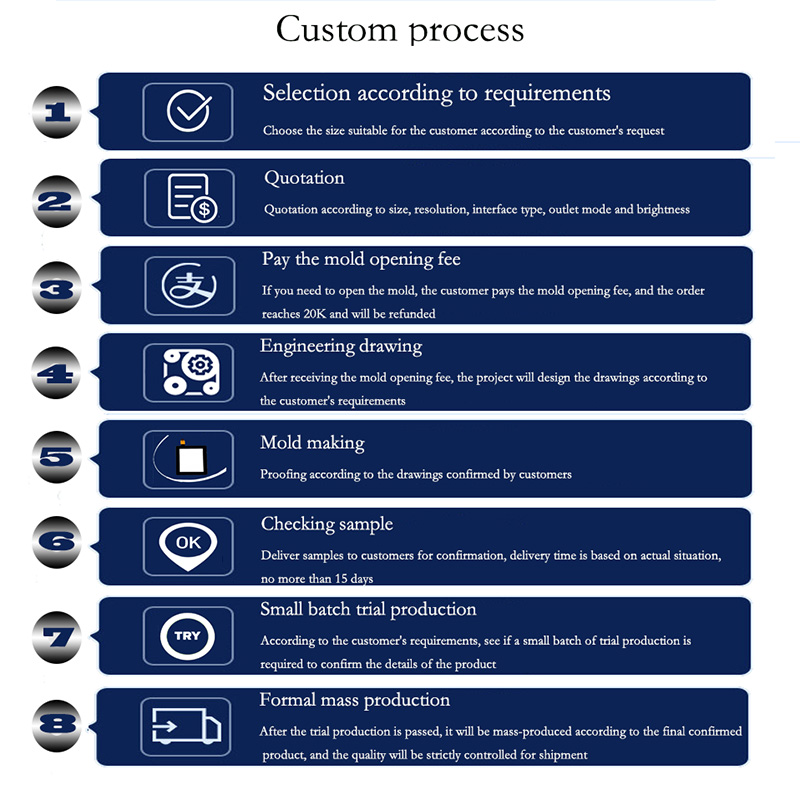

If the existing products cannot meet your needs, size, brightness, interface definition and other requirements, they can be customized according to your needs. The specific customization process is as follows

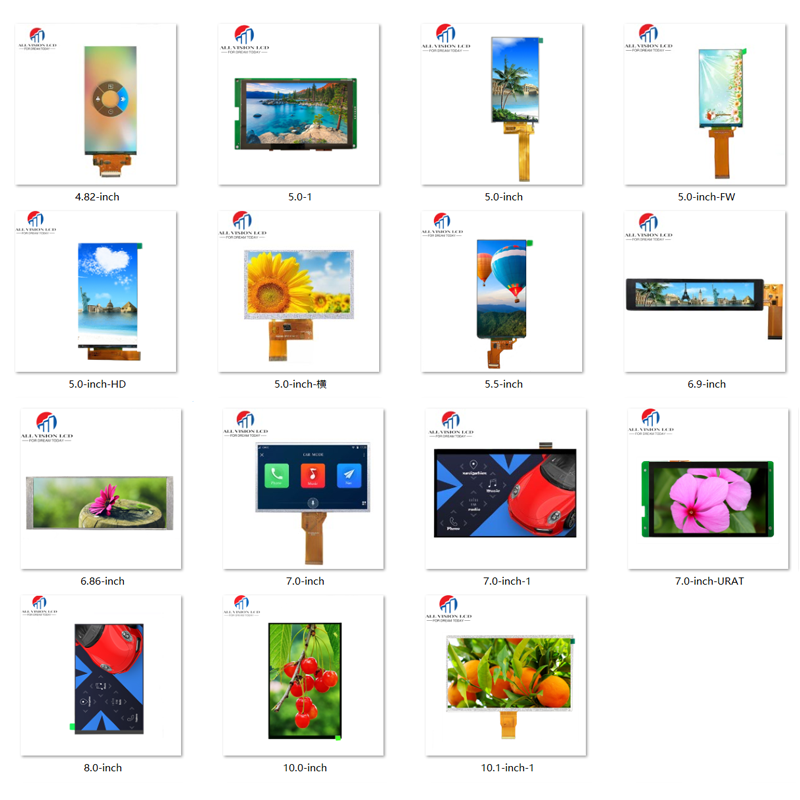

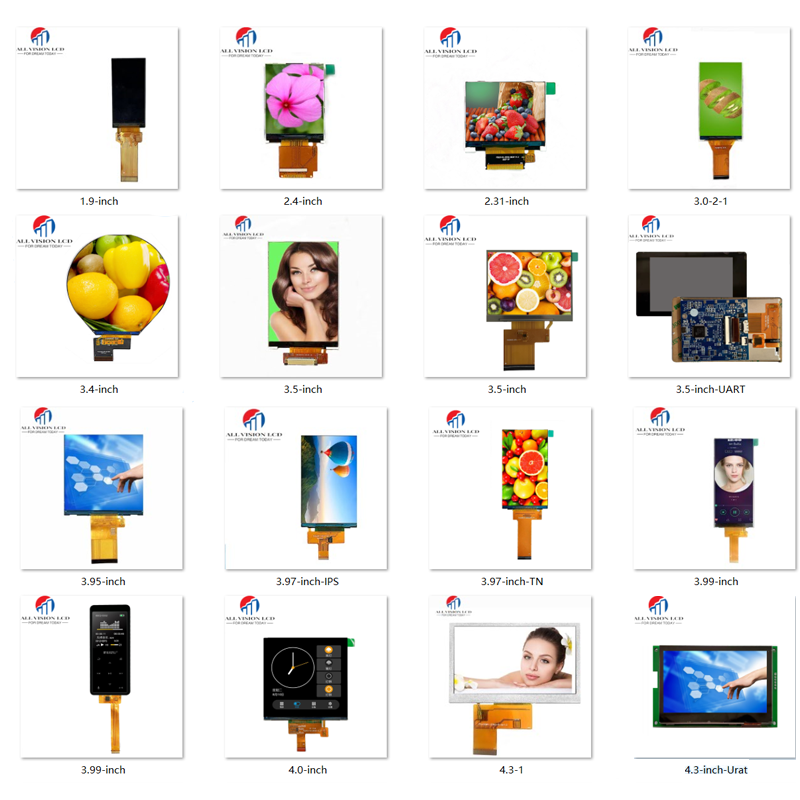

The company's existing product list is as follows, both regular size and customized size are available for your reference
The company adheres to the product design concept of "professional, efficient, stable and reliable, innovative", and provides products of various specifications, models and sizes according to customer needs.
We actively innovate, constantly apply advanced technology to product development and production, effectively meet customer product needs, and provide customized overall display solutions at any time according to market and customer demand changes.
With a conscientious attitude, positive thinking, and serious answers, we continuously improve product and service quality, focus on customer needs, be honest and trustworthy, and provide customers with high-quality services.
1、The list doesn't meet my product specifications, Is there any other size or specification can be choose or customize for me?
Here is our standard product in website, which can provide sample fast for you.
We show part of items only, because there are so many types of LCD panels. If you need different specification, our experienced PM team will provide the most suitable solution for you.
2、What kind of environment need to use High Brightness Panel?
Differ from the brightness of traditional panels.It allows the user to see the display under strong sunlight which enables operation under special conditions. Like industries such as parking lot, industries, transportation, military etc…
3、How long is the product warranty?
Besides danmage caused by human factors, within one year warranty from the start of shipping. If there are special conditions, the warranty time will be separately notified.
4、Does the product support customization?
If there is no product that meets your requirements, we can customize the proofing according to your requirements
5、How to buy in bulk? Is there any discount on this product?
If you need to buy in large quantities, you can contact our Sales and we will offer quotations and transaction terms for you.
